Solar Technology 125w Rigid Mono High Density Solar Panel Kit With 10amp Charge Controller
Made using innovative solar cell technology designed to deliver superior efficiency, the new 125wp Rigid Mono High Density (MHD) solar panel offers greater output in a smaller footprint. With the potential of delivering 750w of power per day, the 125w MHD panel gives you the freedom to spend time away from electrical hook up whilst keeping your favourite appliances and devices working.Ā The sturdy anodized aluminium frame complements the solar cells to create a smart all-black panel with an IP67 waterproof rating. MHD panels are perfect for use on a motorhome, caravan or campervan roof as well as other off grid power applications. They are supplied with a 10-year module warranty. A charge controller should be used with this panel to protect the battery from being overcharged and to prevent reverse of current drain.Ā
Technical Specification
Ā Size 988x670x35mm
Weight (Kg) 7.5
*Typical watts/day (W) 750
*Typical amps/day (A) 23.52
Charge controller 10Ah
Vmp (VDC) nominal voltage 31.9V
Imp (A) nominal current 3.92A
Voc (V) 37.6V
Isc (A) short circuit current 4.15A
*Watts and Amp hours/day based on six hours of average daily peak sunshine hours.
Warranty
10 year panel build warranty
Features
High efficiency crystalline cell for āall weatherā charging
Water resistant, robust construction for outdoor use.
In built diode protects against battery discharge
Tough and robust
10 year module warranty
Solar Panel Kit Contents
1 x 125w MHD solar panel with 4m cable attached
1 x fitting instructions
10 year warranty

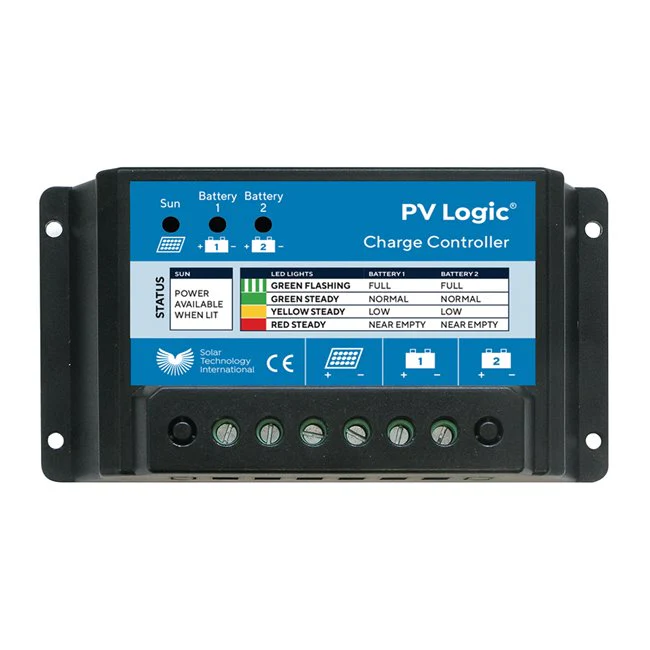

Charge controller 10A Dual Battery PWM
Original: $360.05
-70%$360.05
$108.02Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Made using innovative solar cell technology designed to deliver superior efficiency, the new 125wp Rigid Mono High Density (MHD) solar panel offers greater output in a smaller footprint. With the potential of delivering 750w of power per day, the 125w MHD panel gives you the freedom to spend time away from electrical hook up whilst keeping your favourite appliances and devices working.Ā The sturdy anodized aluminium frame complements the solar cells to create a smart all-black panel with an IP67 waterproof rating. MHD panels are perfect for use on a motorhome, caravan or campervan roof as well as other off grid power applications. They are supplied with a 10-year module warranty. A charge controller should be used with this panel to protect the battery from being overcharged and to prevent reverse of current drain.Ā
Technical Specification
Ā Size 988x670x35mm
Weight (Kg) 7.5
*Typical watts/day (W) 750
*Typical amps/day (A) 23.52
Charge controller 10Ah
Vmp (VDC) nominal voltage 31.9V
Imp (A) nominal current 3.92A
Voc (V) 37.6V
Isc (A) short circuit current 4.15A
*Watts and Amp hours/day based on six hours of average daily peak sunshine hours.
Warranty
10 year panel build warranty
Features
High efficiency crystalline cell for āall weatherā charging
Water resistant, robust construction for outdoor use.
In built diode protects against battery discharge
Tough and robust
10 year module warranty
Solar Panel Kit Contents
1 x 125w MHD solar panel with 4m cable attached
1 x fitting instructions
10 year warranty
Charge controller 10A Dual Battery PWM
